Custom Honeycomb HDPE Geocell Geocellular Confinement Systems 100mm

Ask Lasest Price
Brand Name :	Geomax
Model Number :	100-330
Certification :	CE
Price :	Negotiation
Payment Terms :	T/T, L/C
Supply Ability :	2000㎡ per day
Delivery Time :	10-20 days

Add to Cart

Product Details
Company Profile

Custom Honeycomb HDPE Geocell Geocellular Confinement Systems 100mm

PRODUCT DESCRIPTION

100mm High Honeycomb Gravel Stabilizer Hdpe Geocell

Product Introduction

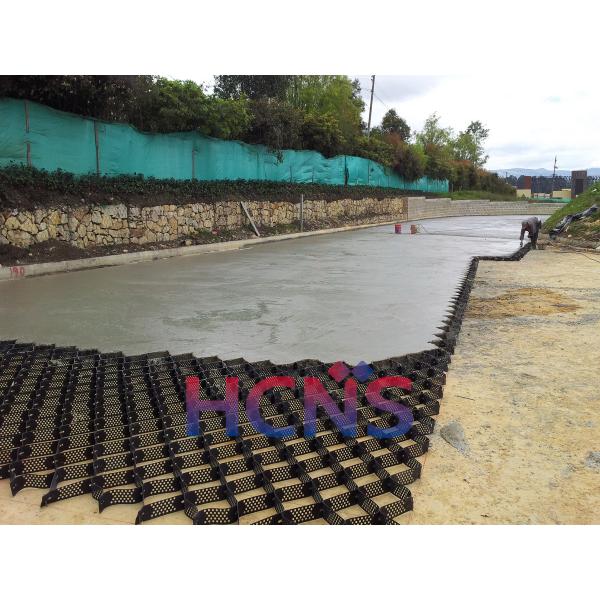

Geomax GeoCell is made from high density polyethylene (HDPE) and manufactured in the USA. HDPE has been used for the most demanding industrial products since 1955. The three-dimensional cells impede lateral movement of the infill material, increasing structural strength and locking in materials for erosion protection. The cell walls are perforated to allow water flow through the system, creating improved root zone between cells for vegetated applications. On concrete filled GeoCell, the HDPE matrix becomes the form for the concrete.

Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

Application

Custom Honeycomb HDPE Geocell Geocellular Confinement Systems 100mm

SOIL REINFORCEMETN

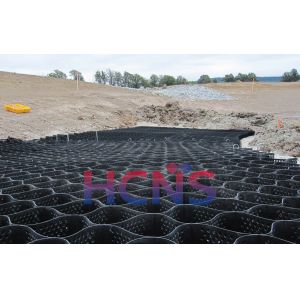

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

HCNS Manufacture

Our Certificates and HDPE Geocell Testing reports
